BRONYA LIGHT & LIGHT NF

Thermal insulting filling compound Bronya Light

Background of the thermal insulating filling compound Bronya Light.

Market today offers a wide variety of materials which help solving thermal insulation tasks. One of these is aerogel or so called "nanogel". It is a thermal insulating component with a very low heat conductivity index which tends towards zero due to considerably decreased convection.

• Main aerogel properties:
• Light weight;
• Resistance to temperature differences;
• High-temperature stability;
• High strength;
• Very low heat conductivity.

Nanogel powder is a base of the modification thermophyisical properties in the thermal insulating filling compound Bronya Light line - through an electronic microscope.

This is perhaps the best material for thermal insulation purposes: light, quite fast, rust- and mold-resistant, non-flammable and certainly unsinkable. Aerogel can drastically decrease heat loss during use of buildings and structures or, on the contrary, cut-down costs for air conditioning and freezing plants operation.

This is quite a challenge to develop a thermal insulating material which, preserving aerogel's set of positive properties, would be convenient and user-friendly for real application and would meet all regulatory requirements imposed for thermal insulating materials. This is a good reason why aerogel has not been popular until recently.

It is also interesting that aerogel was not almost used for the intended purpose. Until recently, thermal insulating materials created on the aerogel basis had been so expensive that such materials as polyurethane foam, mineral wool and other materials could not merely compete. They were also quite bulky and unhandy for use.

Chemical industry's progress has been huge during last decades and it made production of aerogel available especially when this nanogel is produced as a powder. As a result, producers of construction materials could now afford usage of aerogel as a component in the form of so called "nanogel powder".

Singularity of the thermal insulating filling compound Bronya Light is in inheriting all positive nanogel properties and at the same time extending and supplementing its application scope and functional capabilities.

Bronya Light outstanding features.

An outstanding feature of the Bronya Light modification differentiating it from other Bronya modifications is the following:

• Thermophysical properties of 2-3mm of Bronya Light are identical to those of 100-150mm of brickwork.
• Surface temperature can be measured by any meter.
• Usage of thermal insulating filling compound is cost-efficient (for solving additional winterization issues) compared to almost any insulation as the cost of warm filling compound Bronya Light is comparable to regular plasters.
• It can be used with surfaces which require light insulation (to eliminate cold wall effect, frost penetration and formation of condensate during severe frost) and also where thermophysical properties would require less than 1mm of LCTI Bronya (Facade or Classic).
• It can be used for multi-layer enclosing structures with a capability to apply any construction material over our warm filling compound;
• Filling and thermal insulating works can be performed simultaneously cutting down labor costs significantly.
• The material can be applied using plaster sprayers and airless spraying machines at high pressure.
• Layer thickness can be up to 3mm at one run;
• The coat will dry faster if the temperature raises to 50-60° С;
• The material can be agitated by a construction mixer at any revolutions;

What could not be made before, now is possible with Bronya Light!

1. Floor insulation using "warm floor" system.

Standard installation methods of under floor heating require an insulator between a floor slab and system heating elements what considerably increases threshold thickness. Now you don't have to use standard insulators which in the course of time lose their strength and shrink. Bronya Light can ensure thermal insulation better than any other material and significantly lessen warm floor thickness.

Bronya Light creates a thermal barrier preventing from frost penetration from outside and reflecting heat coming from the heating system.

Warm floor. Heat exchange process with insulation and without it.

2. Building walls will be insulated and plastered in one run if using Bronya Light.

Building wall insulation is quite a complicated and labour-consuming process which cannot be always performed using conventional construction materials which are bulky and require additional labour costs for installation. Warm filling compound Bronya Light can be coated with any decorative materials such as wall papers, paints, decorative plasters, tile adhesive and etc.

Building walls. Heat exchange process with insulation and without it.

3. Roof insulation.

Bronya Light enables for roof insulation using materials which do not make structures heavier and at the same time create thermal barrier from outside ambient. Therefore, there is no heat loss, internal icing, condensate and icicles formation in the cold period and warming-up in the warm period is considerably lower.

Roof. Heat exchange process with insulation and without it.

Explicit experiments demonstrating high quality of the warm filling compound Bronya Light:

1. Apply 3 mm of the thermal insulating filling compound onto an electrical heat plate and after complete drying turn it on. Place an ice cube and your hand onto the isolated and not isolated surface and you will see the difference.

Fig. 1 Heat plate, Bronya Light has been applied. Fig. 2. Plate temperature is +140º С. Fig. 3 Experiment with ice cubes

2. You can also perform a simple experiment - apply just 1mm of the filling compound Bronya Light onto for instance a brick from one side and after it's dried, take it into your hands from the both sides (coated and not coated) and you will notice the difference (the coated side pulls heat from your hand not as much as the other side). Same happens with a wall in a building.

Fig. 1 Face brick Fig. 2 Brick coated by Bronya Light

3. Gypsum plasterboard is coated by the warm filling compound Bronya Light; half of the plasterboard remains uncoated for a more visible effect. The plaster board is placed into a freezer with coated side down, then the freezer is cooled down and measurements are taken. This experiment allows to reproduce actual operating conditions of buildings' enclosing structures. Temperature in the freezer goes down to -18º С and then readings are taken from isolated and not isolated surface.

According to the experiment data:

Fig. 1 Freezer Fig. 2 Temperature inside freezer is -18ºС Fig. 3. Temperature of plasterboard isolated area is +19º С

More details about Bronya Light modification.

In comparison to all known conventional filling material, a distinctive feature of the thermal insulating filling compound Bronya Light is that apart from its primary job, which is leveling of the base surface, Bronya Light serves as a heat- and sound-isolating coat and also prevents from condensate and mold formation.

It should be also noted that the warm filling compound Bronya Light has such high thermal insulating properties that heat permeability coefficient of the Bronya Light coat when tested in accordance with GOST 7976-99 is lower than any conventional insulator.

The warm filling compound Bronya Light is non toxic, does not contain harmful volatile compounds and is absolutely safe for people suffering from allergy what is confirmed by Sanitary Epidemiological Expertise issued by Healthcare Federal State-funded Institution "Hygiene and Epidemiology Center in the city of Moscow". Flammability class of the thermal insulating material Bronya Light is F1 (low flammable), fire growth rate in case of fire equals zero (Certificate of Conformity NoПС000277). Thus, application of the thermal insulating material Bronya Light ensures comfort living conditions. This is the reason why most design and estimate companies include this material into multiple storage buildings design.

Thermal insulating filling compound Bronya Light has been issued a Certificate of Class Approval. Russian Maritime Registry of Shipping confirms high quality of the Bronya extra-fine thermal insulation.

Special composition of the warm filling compound Bronya Light enables for simultaneous plastering and heat insulating works on building and structure facades, cutting down labor costs and reducing time for performing the work. Thermal insulating coat Bronya Light has high adhesion, weather resistance and service life durability indicators.

Application of the thermal insulating coat Bronya Light in production facilities allows for increased power efficiency of an enterprise, reduced heating and cooling costs what helps to cut down production expenditures and to improve working conditions. It can be used for marine equipment.

Bronya Light in constructional thermal insulation

You can download Bronya Light Guidelines in Section Technical Documentation.

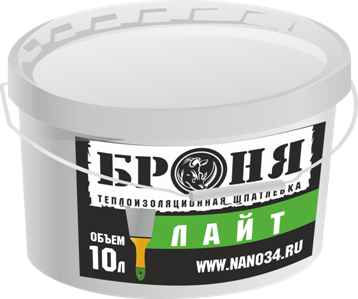

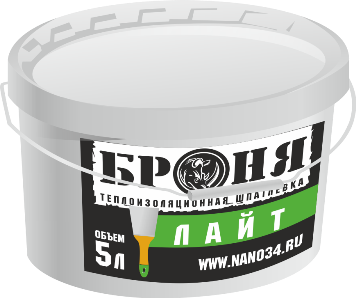

Thermal insulating coat Bronya Light is delivered in plastic oval 5 and 10 liter buckets.

Bronya Light 5L	Bronya Light 10L
