The compound "BRONYA-FIRE PROTECTION" is designed to increase the fire resistance limit of steel structures and industrial and civil buildings from 45 to 120 minutes.
The fire protection properties of the coating meet the requirements of GOST R 53295-2009.
Fire retardant paint or Bronya fire protection (R45, R60, R90, R120) is used to qualitatively improve the fire safety of enclosing structures. The ease of application of the protective material eliminates the need for additional installation work. Fire retardant paints are reliable and durable, so fire protection with paint is convenient and appropriate. This is especially important for hard-to-reach places - dismantling is not required for re-fire protection work.

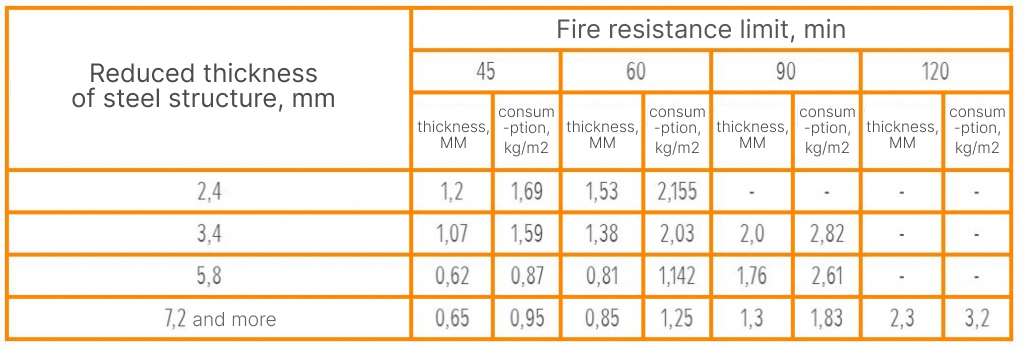

Dependence of the "BRONYA FIRE PROTECTION" coating thickness (mm) on the required fire resistance limit (R) and the reduced metal thickness (RMT)

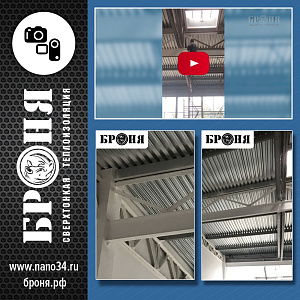

Experiment with BRONYA FIRE PROTECTION fire retardant compound.
Advantages of Bronya fire retardant compound
- Favorable market value;
- Low consumption with very high fire protection and physical-mechanical characteristics;
- When used in conjunction with LCTM, it does not worsen the thermophysical properties of the coating (including competing brands) and allows the system to obtain the non-flammability (NF) group;
- Unlike analogues, the "Bronya-Fire Protection" compound is subject to tinting, while the fire resistance of the coating does not worsen; A favorable solution for performing fire protection tasks;
- Reduction of labor costs and the cost of work;
- The coating (without an additional protective layer) is intended for indoor use for 30 years;
- The quality of the "Bronya-Fire Protection" compound makes it possible to do what until recently was considered impossible in Russia: to protect light metal structures up to the R120 degree.
- The compound was specifically designed for use on sports and infrastructure facilities, where, with a large building area, the load on enclosing structures is low, and the reduced thicknesses of the load-bearing metal are small. At the same time, the traditional advantages of "Bronya-Fire Protection" are fully preserved - low costs, ease of application and long service life of the coating.
Fire protection tasks for each object are different. Our specialists help to choose the optimal solution for each object. Recommendations on the choice of a protective system, development of special technical conditions, expert approvals, calculation. Specialists of the engineering department advise both on design solutions for the fire safety section, and on the preparation and execution of work - and in some cases, our consultations allowed the customer to significantly reduce fire protection costs.
Operating principle of Bronya Fire Protection
When heated, vapors and inert gases are released, which do not support and slow down combustion, a protective replacement of oxygen with gases and vapors is formed. Thus, fire-retardant paints not only block thermal convection at the protected surface, but also significantly reduce and suppress the flame. At the same time, the upper layer of the protected surface thickens, cokes, and acquires the necessary rigidity. The paint contains flame retardants, specialized gas generators, foam layer stabilizers, and heat-resistant substances based on a polymer binder.
"Bronya Fire Protection" fire retardant compound - before exposure to fire
"Bronya Fire Protection" fire retardant compound - after exposure to fire
Application area
Metal structures of the infrastructure of oil refineries (refineries); - Chemical plant facilities, including those that are sources of exposure to slightly and moderately aggressive acidic or alkaline environments;
- Open and closed parking lots, racks, overpasses;
- Civil construction objects without any restrictions;
- Other facilities where the use of fire-retardant paints without topcoats is advisable.
- air temperature — +5 ÷ +35 ºС;
- relative air humidity - no more than 80%;
- difference between air temperature and dew point greater than 3 ºС;
- atmospheric precipitation — absent;
- atmosphere state — according to GOST 17.2.3.02.
- Increases the fire resistance limit (R) of coated structures from R45 to R120. The thickness selection is determined using tables 1 and 2.
- When used in conjunction with LCTM, it does not worsen the thermophysical properties of the coating (including competing brands) and allows the system to obtain the non-flammability (NF) group.
- Unlike analogues, the "Bronya-Fire Protection" compound is subject to tinting, while the fire resistance of the coating does not worsen.
- It has a common base with Bronya LCTM, which makes it possible, when used together, to obtain an ideal non-combustible "Bronya NF" system with excellent fire resistance, physical and thermophysical properties.
- Possibility of application for fire protection and thermal insulation of both metal structures (using "Bronya Classic" and "Bronya Anticor" LCTM) and enclosing structures of buildings (using "Bronya Facade" and "Bronya Zima").
- The coating (without an additional protective layer) is intended for indoor use for 30 years.
- Coating group according to GOST 9.032 - special (5/3).
- Color of the fire retardant coating - white, shade is not standardized, the compound is tinted no more than 1%.
- Color of the additional (protective, decorative) layer - not standardized.
- Fire protection efficiency group according to GOST R 53295 - 2.
- Fire resistance limit provided by the coating according to GOST 30247 - R15.. R120.
- The fire protection properties of the coating meet the requirements of GOST R 53295 "Fire retardants for steel structures. General requirements. Method for determining fire protection efficiency", GOST 30247.1 "Building structures. Fire resistance test methods. Load-bearing and enclosing structures".

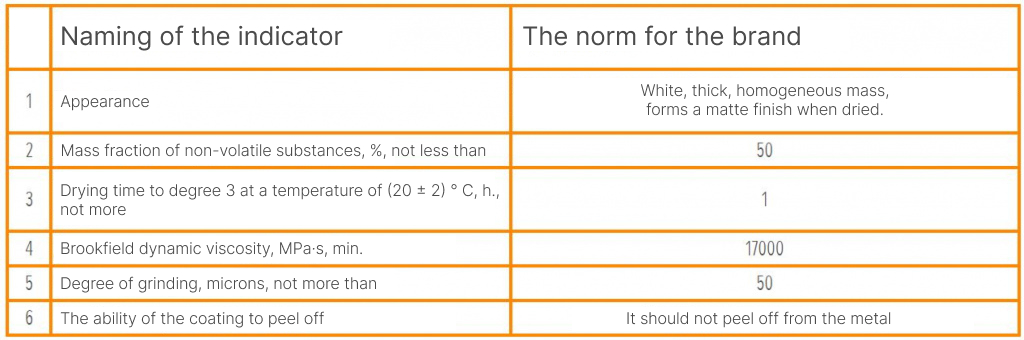

Technical characteristics of the "Bronya-Fire Protection" fire retardant compound
Recommended primers: GF-021 or Epiprime-046
Methods: brush, trowel, "Graco" airless sprayers
Conduct coating application under the following conditions:
Interlayer drying: 5-6 hours to degree "3" at 20°C
Bronya Fire Protection. Brush application.
Bronya Fire Protection. Application with Graco apparatus.
Joint application of Bronya FireProtection compound and Bronya series liquid ceramic thermal insulation coatings.
Fire retardant and thermal insulation coating based on the Bronya Fire Protection compound is a system consisting of a primer from the Bronya series of special coatings, Bronya liquid ceramic thermal insulation coating, "Bronya Fire Protection" fire retardant coating and an additional (protective) layer of Bronya water repellent.
Bronya Fire Protection has the following advantages:
Dependence of the dry layer thickness of the "Bronya Fire Protection" coating on the required fire resistance limit and reduced metal thickness.
Tabular representation of the dependence of the "Bronya Fire Protection" coating thickness on the required fire resistance limit (R) and reduced metal thickness (RMT). thickness, mm consumption, kg/m²
Combined Structural Fire Protection is used for a qualitative increase in the fire safety of enclosing structures, confirms the possibility of using a combination of our products instead of traditional structural fire protection systems, as well as application on units of objects where there was a task before, but it was not possible..
Advantages of using the proposed highly effective combined structural fire protection:
is provided a structural fire protection limit from 120 min to 240 min;
the thermophysical properties of the coating are not worsened, the calculated thermal conductivity coefficient of 0.001 W/(m⋅°C) is maintained when applying fire-retardant coatings during pre-fire operation.
heat-insulating coating of non-flammability (NF) group, which increases the overall fire resistance of combined structural fire protection;
the possibility of simple installation of structural fire protection - mechanical or machine application similar to painting work;
the possibility of protecting structures of any complex shape;
absence of additional load on the supporting structures due to the small thickness and low weight of the coatings.

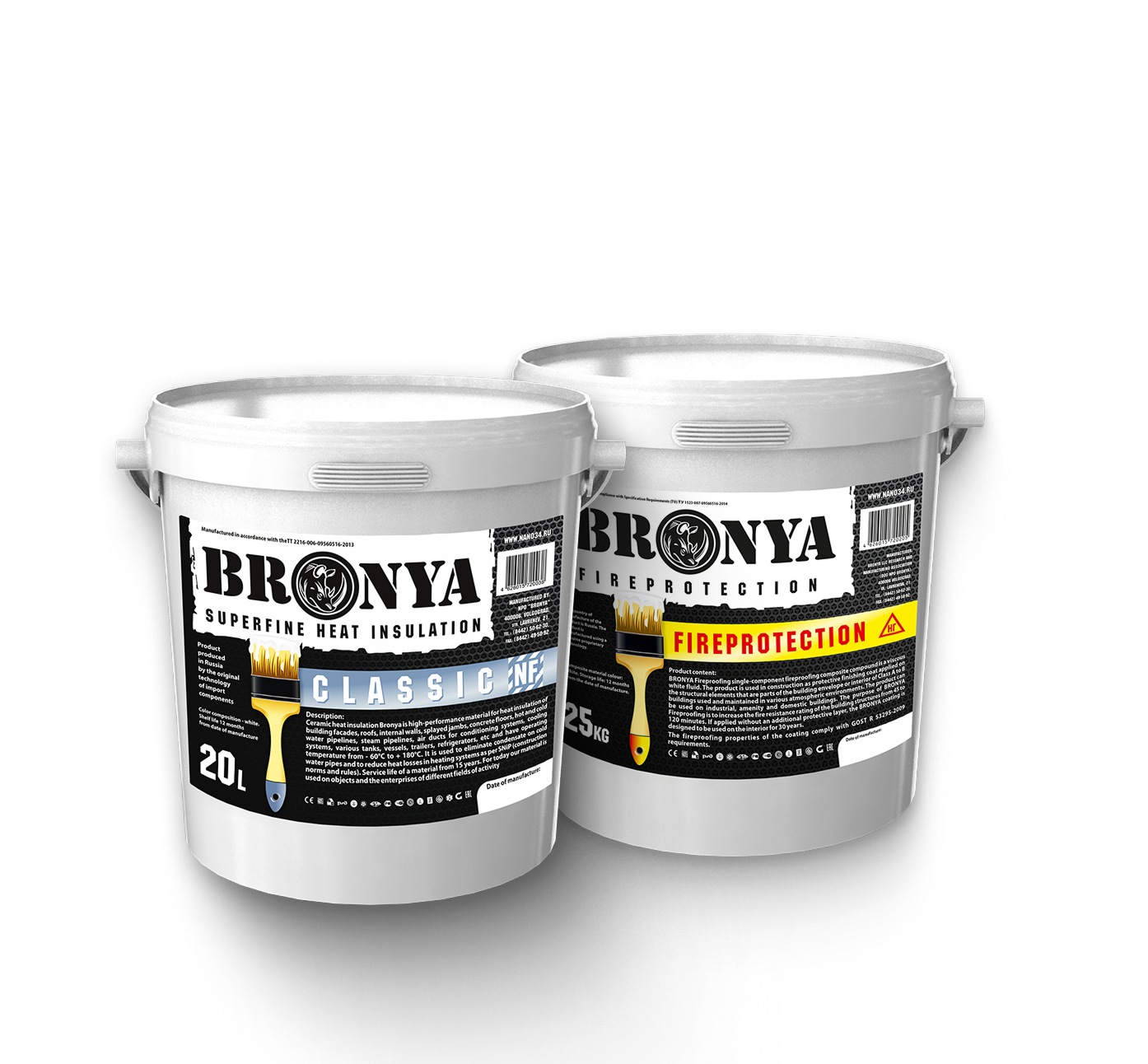

Combined structural fire protection consisting of "Bronya-Fire Protection" fire-retardant compound and "Bronya" series liquid ceramic thermal insulation coating: Bronya Classic NF, confirmed by Certificate of Conformity dated 25.05.2023 No. ССБК.RU.ПБ33.H00405, is able to increase the following fire resistance limits of the structure:
Bronya-Fire Protection not less than 1.50 mm + Bronya Classic NF not less than 1.50 mm – R 120.
Bronya-Fire Protection not less than 4 mm + Bronya Classic NF not less than 4 mm with an additional reinforcing layer in the form of geotextiles, non-woven fiberglass or fiberglass fabric – R 240.

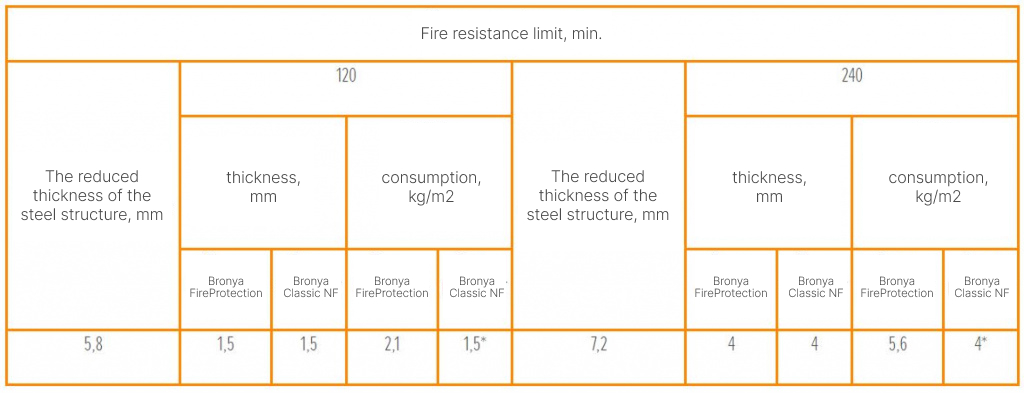

Dependence of the thickness of the Combined structural fire protection consisting of the "Bronya-Fire Protection" fire-retardant compound and the "Bronya" series liquid ceramic thermal insulation coating: Bronya Classic NF (mm) on the required fire resistance limit (R) and the reduced metal thickness (RMT)
Application area.
Metal structures of oil refinery (refinery) infrastructure;
Chemical plant facilities, including those that are sources of exposure to slightly and moderately aggressive acidic or alkaline environments;
Open and closed parking lots, racks, overpasses;
Civil construction objects without any restrictions;
Other facilities where the use of fire-retardant paints without topcoats is advisable.
Certificate of Conformity:
Protocol R 120:
Protocol R 240:
Schemes "Structural Fire Protection" 120 min., 150 min., 180 min., 240 min.
- Liquid thermal insulation coating of the "Bronya" series with a thermal conductivity coefficient of 0.001, Bronya Classic NF, produced according to TU 2216-006-09560516-2013 with amendment No. 1, 1 mm thick + "Bronya Fire Protection" 3 mm (with additional reinforcement with non-woven fiberglass, between non-combustible LCTC and Fire Protection). Thus, we will be able to interpolate the metal thickness you need and obtain - R120;
- Liquid thermal insulation coating of the "Bronya" series with a thermal conductivity coefficient of 0.001, non-flammability (NF) class, produced according to TU 2216-006-09560516-2013 with amendment No. 1, 2 mm thick + "Bronya Fire Protection" 2 mm on 5.8 mm metal (with additional reinforcement with non-woven fiberglass, between non-combustible LCTC and Fire Protection) - R150;
- Liquid thermal insulation coating of the "Bronya" series with a thermal conductivity coefficient of 0.001, non-flammability (NF) class, produced according to TU 2216-006-09560516-2013 with amendment No. 1, 3 mm thick + "Bronya Fire Protection" 3 mm on 3.4 mm metal (with additional reinforcement with non-woven fiberglass, between non-combustible LCTC and Fire Protection) - R180.
- Bronya-Fire Protection, produced according to TU 1523-007-09560516-2014, not less than 1.50 mm + Bronya Classic NF with a thermal conductivity coefficient of 0.001, non-flammability (NF) class, produced according to TU 2216-006-09560516-2013, not less than 1.50 mm thick – R 120 (reduced metal thickness 5.8 mm).
- Bronya-Fire Protection, produced according to TU 1523-007-09560516-2014, not less than 4 mm + Bronya Classic NF with a thermal conductivity coefficient of 0.001, non-flammability (NF) class, produced according to TU 2216-006-09560516-2013, not less than 4 mm with an additional reinforcing layer in the form of geotextiles, non-woven fiberglass, or fiberglass fabric – R 240 (reduced metal thickness 7.2 mm).
New, 12th Bronya patent received - "Highly efficient combined structural fire protection based on a combination of non-combustible (NF) ultra-thin thermal insulation based on hollow microspheres and a fire-retardant coating".
